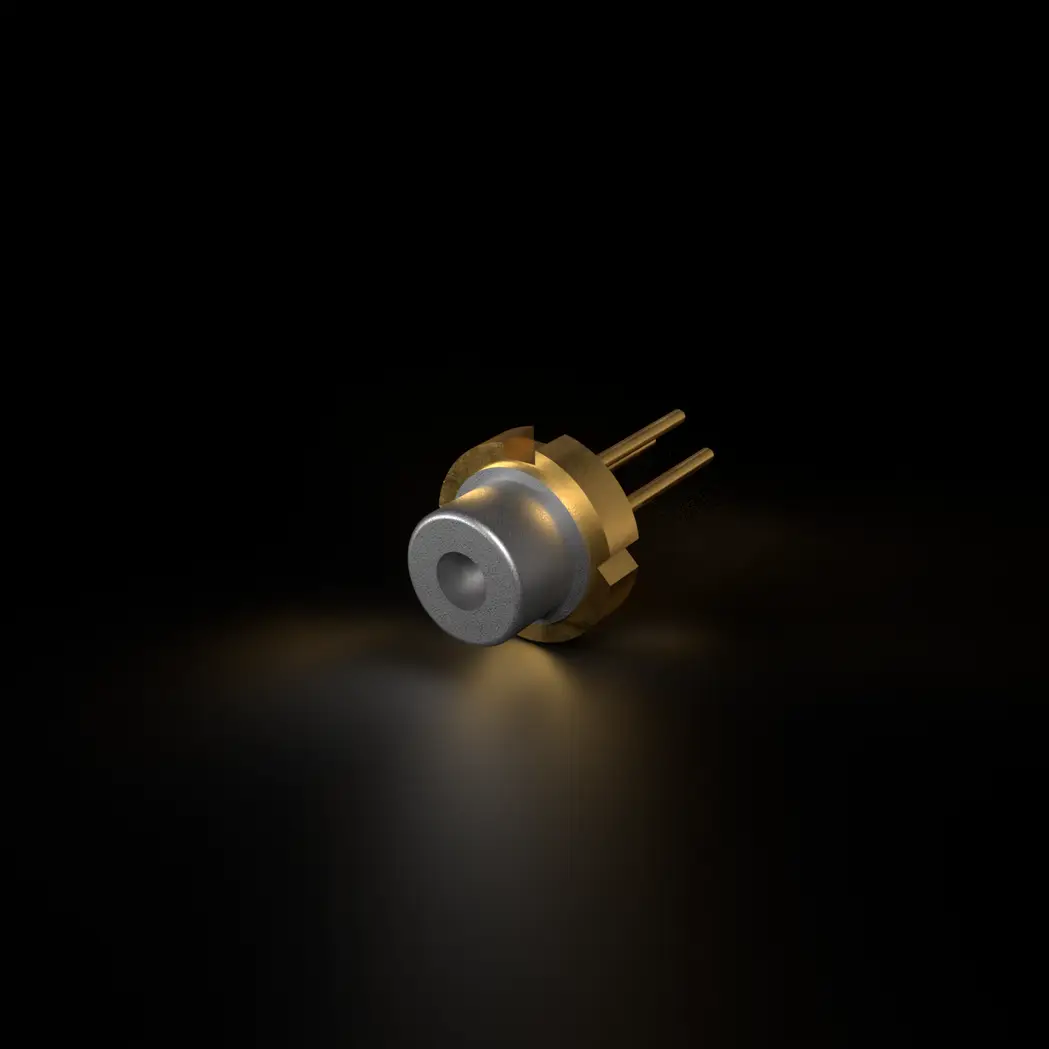

30mW 505nm Laser Diode
€59.66excl. VAT
Part no.: PD-01334
Made to order · lead time approx. 7 days
- Optical output power
- 30 mW
- Wavelength
- 505 nm
- Package
- 5.6 mm
- Operating current
- 125 mA
Specifications
- Optical output power
- 30 mW
- Wavelength
- 505 nm
- Wavelength tolerance
- ±5 nm
- Transverse mode
- Single mode
- Package
- 5.6 mm
- Operating voltage
- 6.0 V
- Operating current
- 125 mA
- Threshold current
- 70 mA
- Beam divergence
- 8.5 × 23 °
- Case temperature
- −10 … +60 °C
- Slope efficiency
- typ. 0.5 W/A
Downloads
Pin assignment
1Anode (LD)
2Case (n.c.)
3Cathode (LD)
