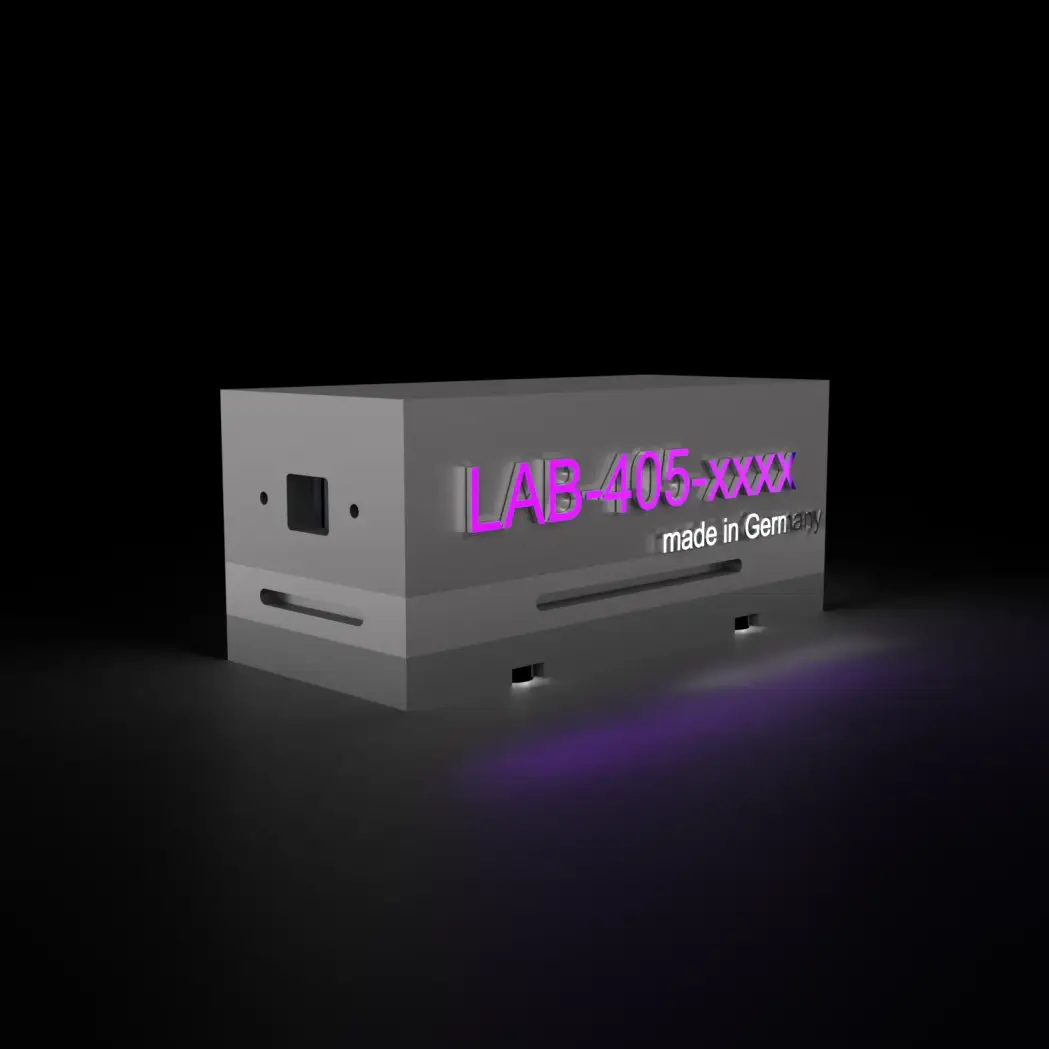

3W 405nm LAB Laser
€1,200.00
excl. VAT
Part no.: PD-01438
Specifications
- Optical output power
- 3000 mW
- Central wavelength
- 405 nm
- Wavelength tolerance
- ±5 nm
- Linewidth
- ≤5 (2 typ.) nm
- Transverse mode
- Multi-Mode
- Beam size (D4σ)
- 3.8 × 3.8 mm
- Beam divergence (full angle)
- 0.2 × 1.5 mrad
- Operation mode
- CW / modulated
- Modulation
- Analog, TTL, PWM (0–5 V)
- Modulation bandwidth
- DC – 500 kHz
- Rise/fall time
- 1.4 µs
- Power stability
- <1 % (8 h, ±3 K)
- Power supply
- 9–12 V DC, 6 A
- Heat load
- 18 W
- Laser head (W×H×D)
- 60 × 26 × 26 mm
- Driver unit
- 94 × 37 × 33 mm
- Weight
- 200 g
Included
- Laser head, mounted and aligned
- Ares driver with TEC controller
- Head-to-driver cable (1 m)
- Mounting brackets for 25 mm optical tables
Applications
- Spectroscopy and fluorescence excitation
- Materials testing
- Show and projection systems
- OEM integration
