3W 465nm OEM Diode Laser
Collimated OEM diode laser module.
€360.00excl. VAT
Part no.: PD-01227
Made to order · lead time approx. 7 days
- Optical output power
- 3000 mW
- Central wavelength
- 465 nm
- Transverse mode
- Multi-Mode
- Operating mode
- CW / moduliert

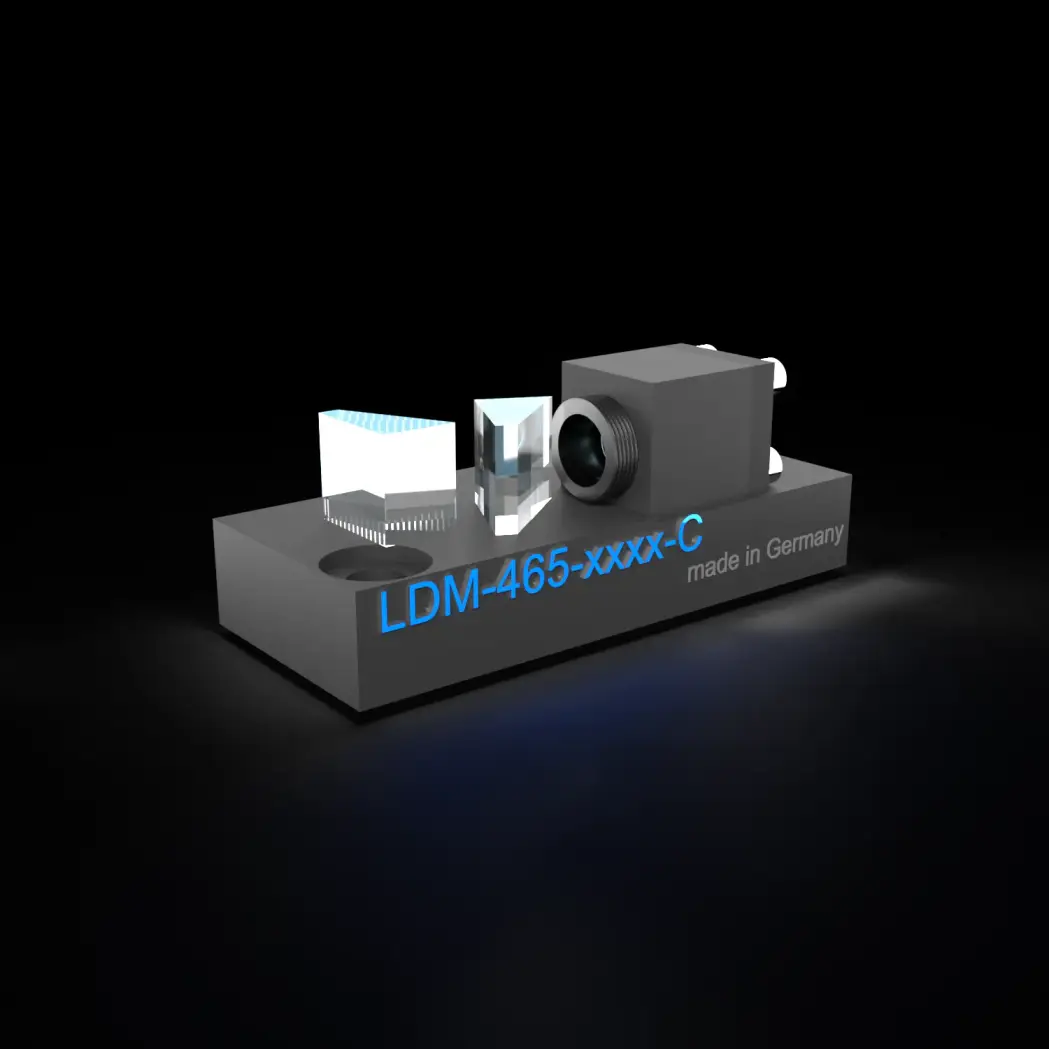

Collimated diode laser module with its driver unit, delivered mounted and aligned. Beam shaping is always included.
Specifications
- Optical output power
- 3000 mW
- Central wavelength
- 465 nm
- Wavelength tolerance
- ±5 nm
- Transverse mode
- Multi-Mode
- Laser head (W×H×D)
- 60 × 25 × 23 mm
- Driver unit
- 94 × 37 × 33 mm
- Linewidth
- ≤ 5 nm (typ. 2 nm)
- Operating mode
- CW / moduliert
- Power stability
- <1 % (8 h, ±3 K)
- Beam size (D4σ)
- 3,8 × 3,8 mm
- Beam divergence (full angle)
- 0,2 × <1,3 mrad
- Modulation
- Analog, TTL, PWM (0–5 V)
- Modulation bandwidth
- DC–500 kHz
- Rise/fall time
- 1,4 µs
- Heat load (TDP)
- 18 W
- Supply
- 9–12 V DC, 6 A
