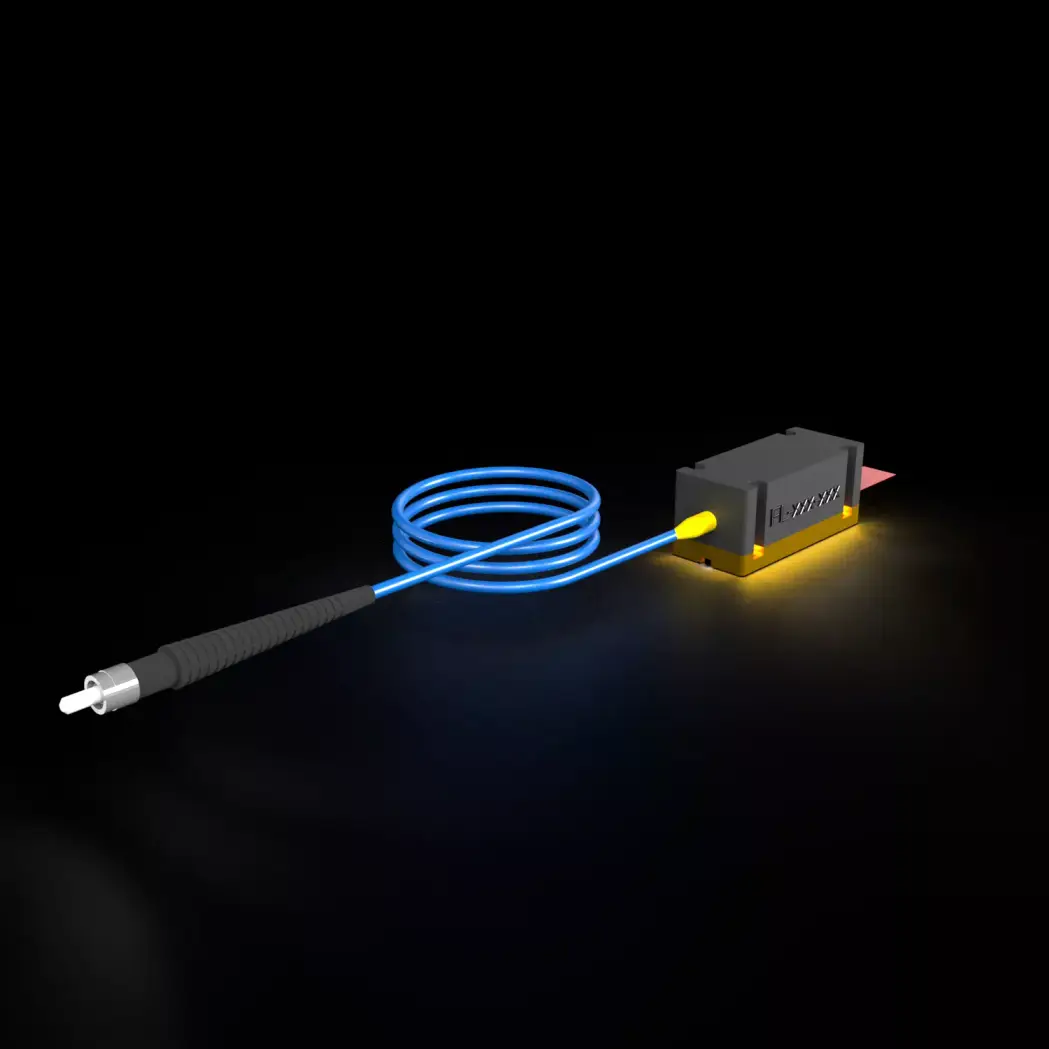

50mW 488nm Fiber Laser
from €799.00
excl. VAT
Part no.: PD-01408
Multimode fiber-coupled laser diode. The head brings out anode, cathode and an NTC; driver and cooling are not included.
Specifications
- Optical output power
- 50 mW
- Central wavelength
- 488 nm
- Wavelength tolerance
- ± 5 nm
- Linewidth
- ≤ 5 nm; 2 nm typical
- Transverse mode
- multi
- Operation mode
- CW / modulated
- Power stability (8 hrs)
- <1 % within ± 3 °K
- Fiber core / NA
- 105 µm / 0.22 (others on request)
- Ferrule material
- Ceramic (stainless steel on request)
- Modulation bandwidth
- >100 MHz
- Threshold current
- 40 typ. mA
- Operating current
- 135 max. mA
- Operating voltage
- 6.1 typ. V
- Heat load
- 18 W heat load at the bottom side of the laser head
- Laser head dimensions
- 50 x 21 x 21 mm
- Laser class
- 4 (EN 60825-1)
- Fiber length
- 1 m (other lengths on request)
Features
- High beam quality and output power
- Various fiber lengths and connectors
Use
- Medicine
- Illumination
- Laboratory and research
- Industry
- Microscopy
