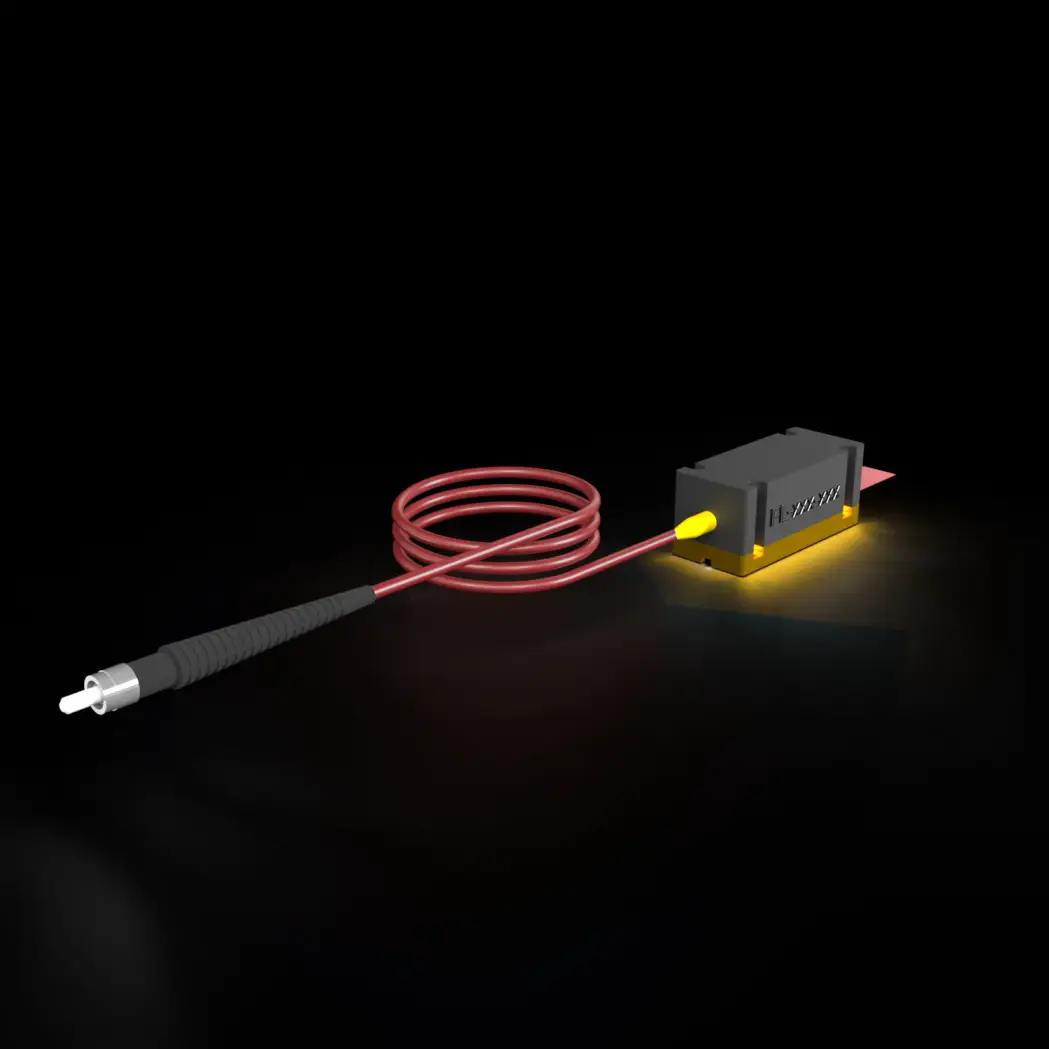

700mW 690nm Fiber Laser
FL-690-700
from €1,500.00excl. VAT
Part no.: PD-01446
Made to order
- Optical output power
- 700 mW
- Central wavelength
- 690 nm
- Fiber core / NA
- 105 µm / 0.22 (others on request)
- Operation mode
- CW / modulated
Multimode fiber-coupled laser diode. The head brings out anode, cathode and an NTC; driver and cooling are not included.
Specifications
- Optical output power
- 700 mW
- Central wavelength
- 690 nm
- Wavelength tolerance
- ±5 nm
- Linewidth
- ≤ 5 nm (typ. 2 nm)
- Transverse mode
- multi
- Operation mode
- CW / modulated
- Power stability
- <1 % (8 h, ±3 K)
- Fiber core / NA
- 105 µm / 0.22 (others on request)
- Ferrule material
- Ceramic (stainless steel on request)
- Modulation bandwidth
- >100 MHz
- Threshold current
- typ. 330 mA
- Operating current
- max. 1340 mA
- Operating voltage
- typ. 2.2 V
- Heat load
- 18 W heat load at the bottom side of the laser head
- Laser head dimensions
- 50 x 21 x 21 mm
- Laser class
- 4 (EN 60825-1)
- Fiber length
- 1 m (other lengths on request)
