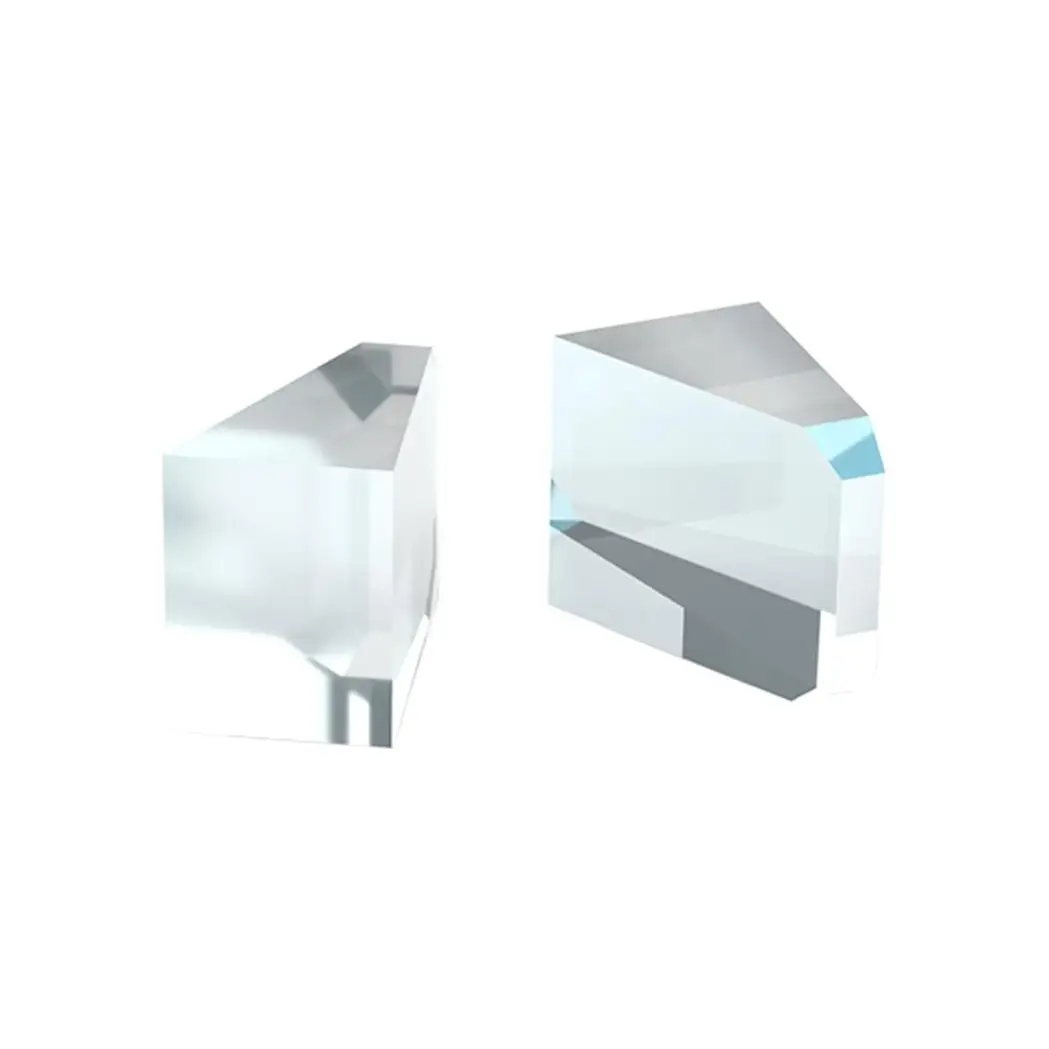

Anamorphic prism pair: two wedge-shaped glass prisms standing on their triangular ground ends, turned towards each other as they sit in a laser, their polished faces towards the camera.1 / 3
Anamorphic prism pair: two wedge-shaped glass prisms standing on their triangular ground ends, turned towards each other as they sit in a laser, their polished faces towards the camera.Anamorphic prism pair seen from above with the beam path: a narrow blue laser beam meets the first prism at an angle, runs on deflected to the second and leaves it parallel, offset to the side and clearly wider.Anamorphic prism pair from the entry side: the first prism's large polished face, which the beam meets, the second prism behind it.

Anamorphic Prism Pair

Prism pair that corrects the elliptical beam profile of a laser diode.

€50.41excl. VAT

Part no.: PD-01155

In stock · lead time 2 days

Specifications

Material
HZLaF2A
Flatness
λ/4 @ 633 nm
Surface quality
60/40
Wedge angle
30 °
Clear aperture
90 %
AR coating
405–670 nm
Dimensions (L × H × W)
10.65 × 10 × 7.5 mm

Reflection
