Knife edge beam combiner HP
Knife edge beam combiner HP

Knife edge beam combiner HP

€149.00

excl. VAT

Part no.: PD-01163-H

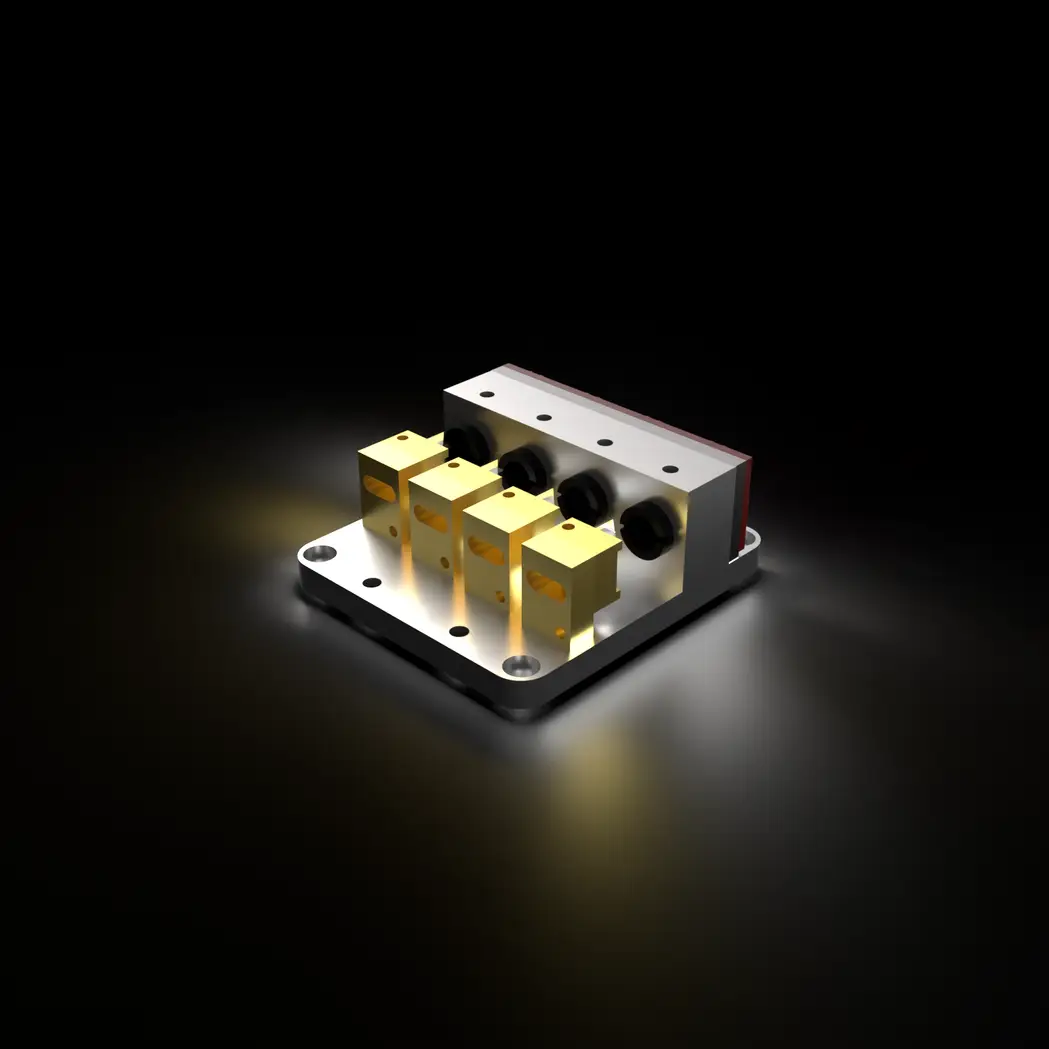

High-power version with a nickel-plated copper body. For 9 mm diodes, with fixed or adjustable mirror spacing.

Specifications

Channels
up to 4
Material
Nickel-plated copper
Dimensions
54 × 60 × 22.7 mm
Mirror mount
Brass
Collimator mount
M9 × 0.5

Features

  • Up to four 9 mm laser diodes combined onto one axis (4×1)
  • Nickel-plated copper body
  • Fixed (1 mm) or adjustable mirror spacing
  • M9×0.5 collimator mounts with set screws
  • Brass mirror holders; connection PCB and retention plate included
  • Mirrors and collimators selected separately

Fixed or adjustable?

Mirror spacing sets how the beams stack:

  • Fixed (1 mm): mirrors stepped in 1 mm increments, beams on a fixed 1 mm grid.
  • Adjustable: mirrors move freely, beams can be merged onto one axis (e.g. RGB).

Applications

RGB and multi-wavelength sources, show and projection lasers.
