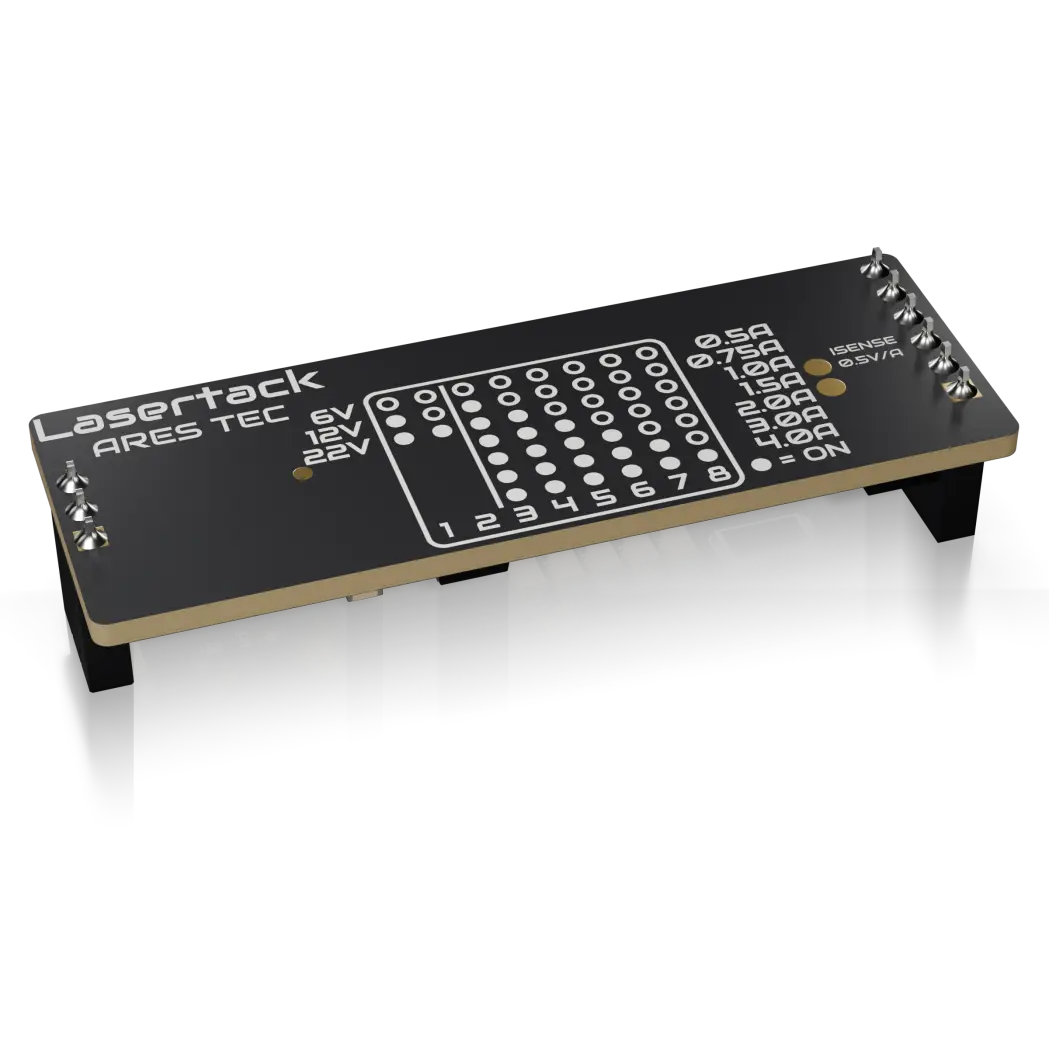

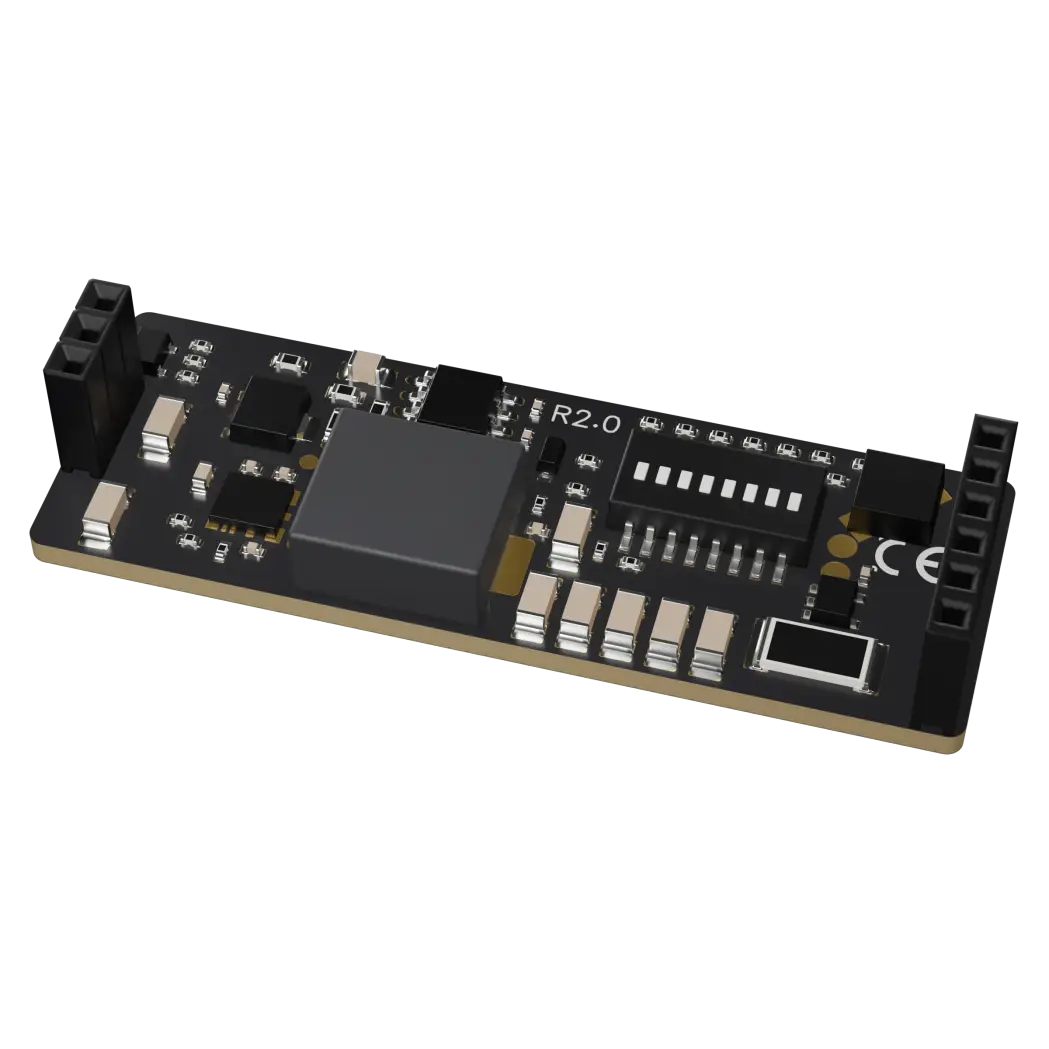

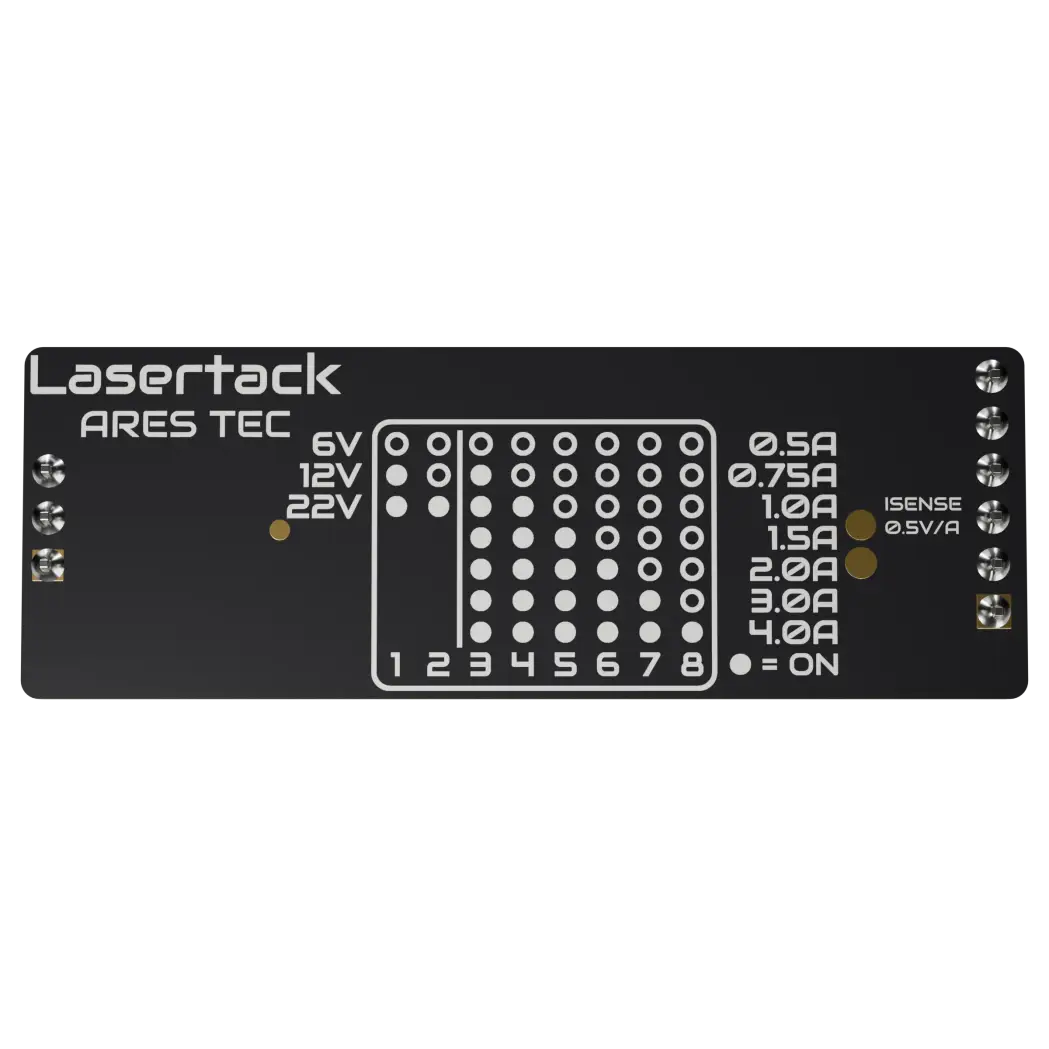

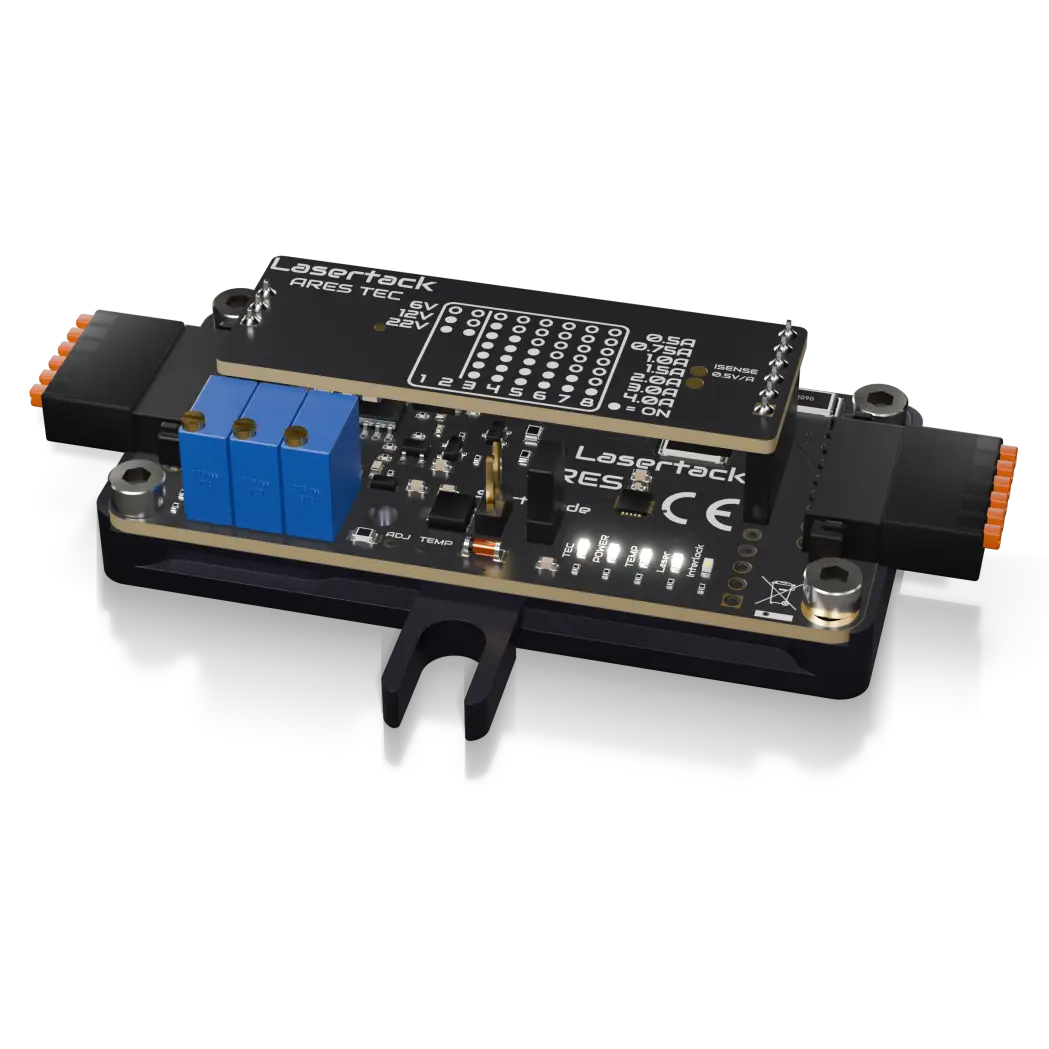

TEC driver for ARES: the narrow black board standing on its two sockets, printed with Lasertack, ARES TEC and the table of DIP switch settings.TEC driver turned over: the parts side with the DIP switch for voltage and current limit and the two sockets.TEC driver, close-up of the parts side: the 8-way DIP switch marked ON and 1 to 8, with the diode and the socket beside it.TEC driver for ARES from above with the table of DIP switch settings; dimension line: length 54 mm.TEC driver plugged onto the ARES laser diode driver; both 6-pin plugs are in, the status LEDs are lit.

TEC driver for ARES

Add-on module for the ARES laser diode driver

€32.77excl. VAT

Part no.: PD-01360

In stock · lead time 2 days

Specifications

Operation mode
cooling only
Current limit
0.5 / 0.75 / 1 / 1.5 / 2 / 3 / 4 A, via DIP switches 3–8
Output voltage
6 / 12 / 22 V, via DIP switches 1–2
Power supply
via the ARES; the output voltage is limited by its supply (up to 24 V)
Current monitor output
ISENSE, 0.5 V/A
Temperature setpoint
set on the ARES
Connection
plugs directly onto the ARES (3-pin supply, 6-pin TEC and NTC), no cables or screws
Dimensions
54 × 19 mm
Indicator
via the ARES's TEC LED
Included
TEC driver (no small parts)
Requires
ARES laser diode driver
