ARES Laser Diode Driver
€79.00excl. VAT
Part no.: PD-01359
Made to order · lead time approx. 7 days
- Output current
- 125 mA / 500 mA / 2.5 A / 4.5 A (selectable version)125 mA500 mA2.5 A4.5 A
- Input voltage
- 7–25 V DC (integrated step-down)
- Modulation bandwidth
- analog 600 kHz, TTL 50 kHz
Specifications
- Output current
- 125 mA: 125 mA500 mA: 500 mA2.5 A: 2.5 A4.5 A: 4.5 A125 mA500 mA2.5 A4.5 A
- Input voltage
- 7–25 V DC (integrated step-down)
- Laser supply
- 5.1–14.1 V, adjustable
- Modulation
- analog and TTL, 0–5 V
- Modulation bandwidth
- analog 600 kHz, TTL 50 kHz
- Switching times
- on 2–5 µs, off 0.2–1.5 µs (laser lead 1 m)
- Temperature sensor
- NTC 10 kΩ

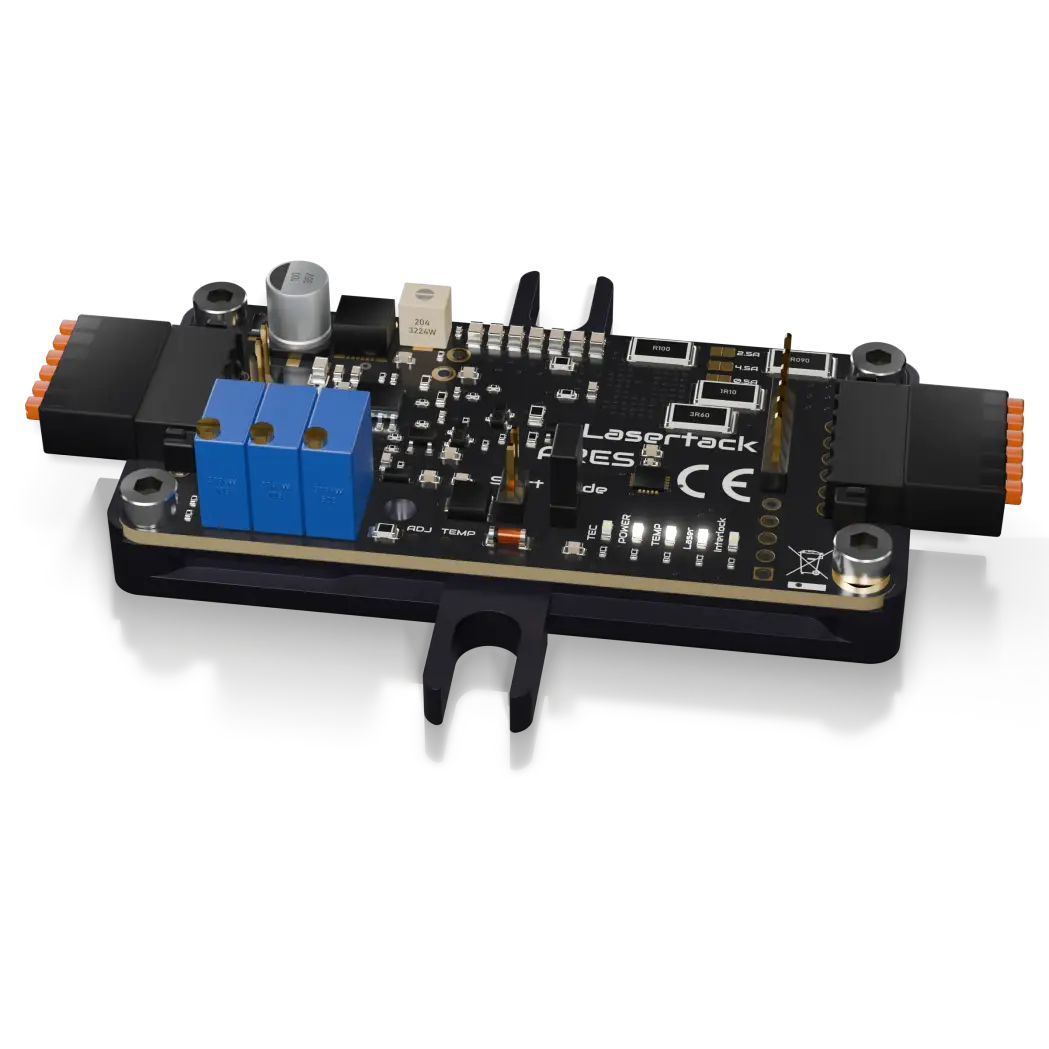

- Connections
- 2 × 6-pin pluggable
- Dimensions
- 75 × 37 mm
- Mounting
- 2 clamps, hole spacing 50 mm
- Conformity
- CE (EMC 2014/30/EU)

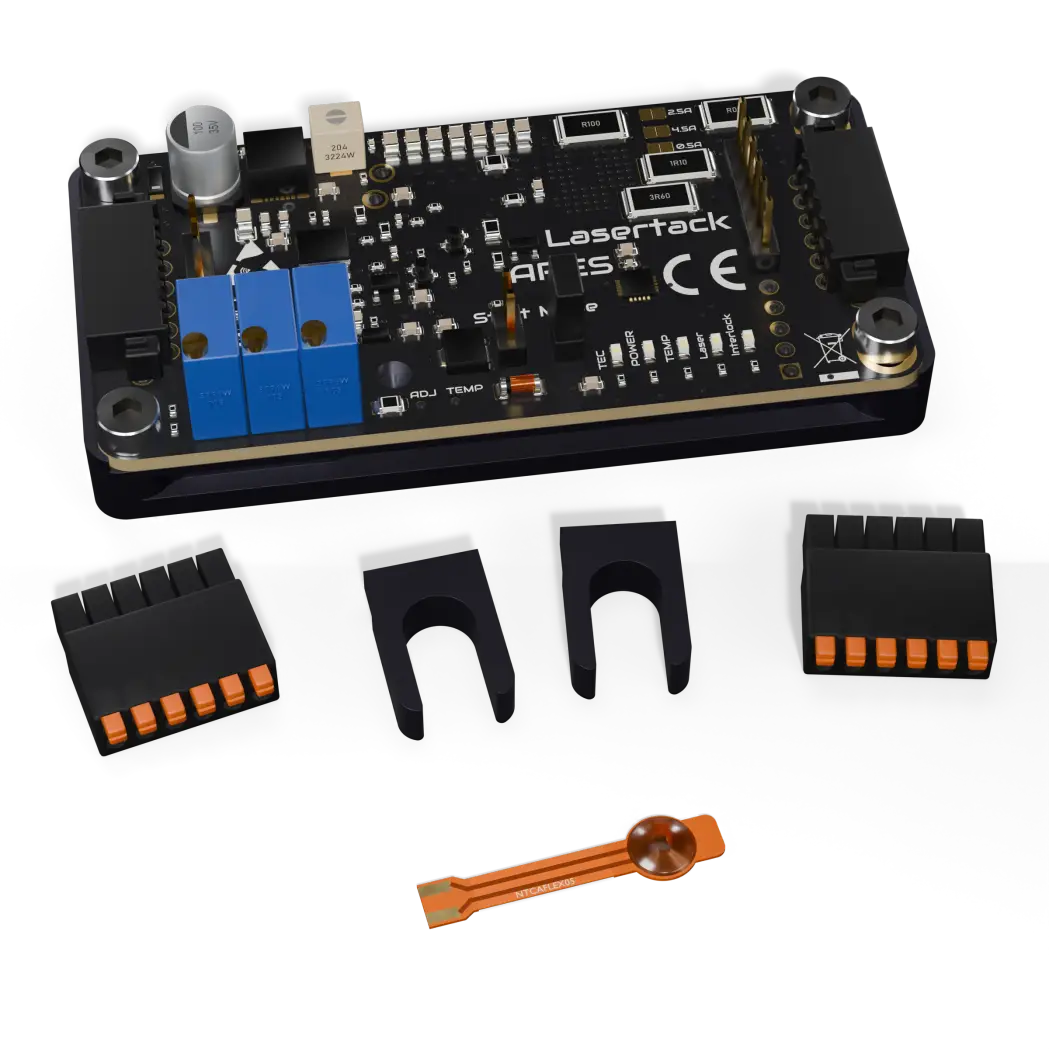

- Included
- ARES, 2 plugs, 2 clamps, foil NTC
Features
- Constant-current regulation
- Analog and TTL modulation on one input
- Interlock
- Over-temperature cut-off, adjustable threshold
- Beam suppression
- Switch-on delay
- Slot for the TEC driver
