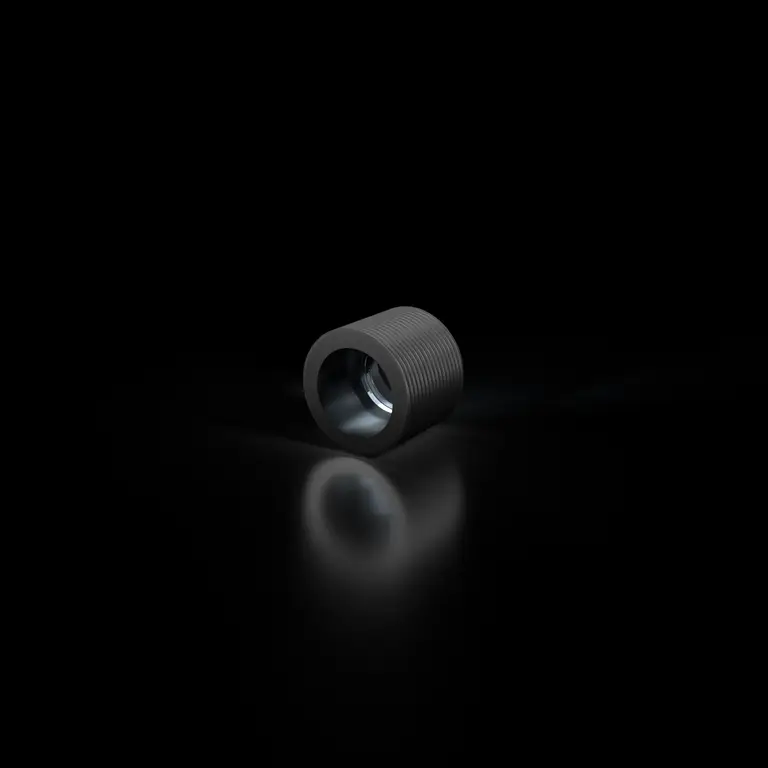

Aspheric collimator M9 x 0.5: the black threaded housing with its lens, seen at an angle from the front.1 / 3
Aspheric collimator M9 x 0.5: the black threaded housing with its lens, seen at an angle from the front.Aspheric collimator M9 x 0.5: looking at the lens in its housing from the front.Aspheric collimator M9 x 0.5: the rear end of the threaded housing with its clear opening.

Aspheric Collimator

Aspheric collimator with M9×0.5 thread for collimating laser diodes.

€32.77excl. VAT

Part no.: PD-01175

In stock · lead time 2 days

Aspheric collimating lens in a brass housing with an M9×0.5 thread.

Specifications

Thread
M9 × 0.5
Housing material
Brass
Reflection
< 0.5 %
Overall length
8 mm
Numerical aperture
0.6 (f = 4.02 mm) · 0.30 (f = 8 mm)
AR coating
AR-VIS 400–700 nm · AR-IR 700–1100 nm

AR Coating
